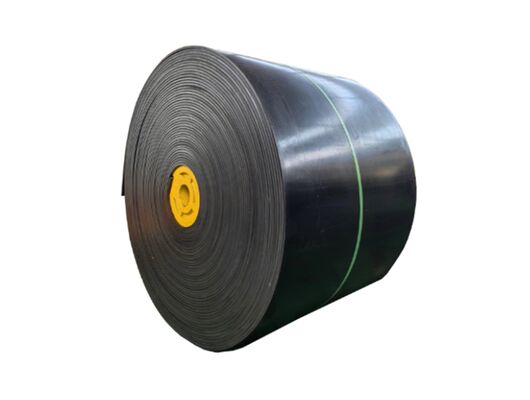

Heat Resistant Steel Cord Conveyor Belt for Long Distance High Speed Material Transportation

Name: Heat Resistant Steel Cord Conveyor Belt for Long Distance High Speed Material Transportation
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: ST630/ST800/ST1000/ST1250/ST1600/ST2000
Price: 54.20 USD
Availability: InStock

Marka Adı:	UCER
Model Numarası:	ST630/ST800/ST1000/ST1250/ST1600/ST2000
Adedi:	100 metre
fiyat:	pazarlık edilebilir
Teslim Zamanı:	1 takım
Ödeme Şartları:	L/C,D/P,T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Enterprise credit rating AAA

Renk:

Siyah

Performans:

GB9770

Uzunluk:

2600mm

Minimum çalışma sıcaklığı:

-60 ℃

Modeli:

ST630/ST800/ST1000

Malzeme Özelliği:

Isıya Dayanıklı

Kullanım:

Üstten Asılı, Panel Etkileşimi

Garanti:

12 Ay

Ambalaj bilgileri:

Demir ambalaj, demir çerçeve veya diğer

Yetenek temini:

Aylık 10000

Ürün Tanımı

ST800 Flat Versatile Wire Rope Conveyor Belt For Long Distance High Speed Material Transportation

Black Steel cord conveyor belt ST800 Wire Rope Conveyor Belt

Wire rope conveyor belt is a rubber conveyor belt with steel wire as the skeleton. It has the advantages of high tensile strength, good impact resistance, long life, low elongation, good trough forming, and good flexural resistance. It is suitable for long-distance, long-haul, and high-speed transportation of materials. The product is composed of core rubber, steel wire rope, covering layer and edge rubber.

Purpose

Wire rope conveyor belt is suitable for material transportation under tear-proof conditions required by coal mines, mines, ports, electric power, metallurgy, building materials and other industries. It can be used for long-distance, large-span, large-volume and high-speed material transportation.

Common Damage Forms

There are many forms of damage to the wire rope conveyor belt, mainly: serious wear on the rubber surface; ripped edges; tearing. Among them, conveyor belt tearing is the most harmful form of damage. It mainly refers to the longitudinal tearing of the conveyor belt caused by the sharp impurities in the conveying material being inserted into the conveyor belt or the steel wire in the conveyor belt is drawn out.

Although the tearing of the conveyor belt is an accidental damage, it is very destructive. If it is not controlled in time, it will cause the entire conveyor belt to tear (accidents of tearing the conveyor belt of thousands of meters occur from time to time in the port), which will cause production shutdown, bringing huge direct and indirect economic losses to the port. Therefore, the protection and detection of the tearing of the conveyor belt have always been paid attention to by the conveyor belt manufacturers and users. At the same time, the relevant national standards also require that the conveyor belt should be installed to prevent longitudinal tearing and tearing detection devices.

Classification

By structure: ordinary type and impact-resistant and tear-resistant type
By purpose: In addition to ordinary types, there are also types of wear resistance, heat resistance, cold resistance, acid and alkali resistance, flame retardancy, tear resistance, flame resistance, and ozone resistance
By variety: According to the performance of the covering rubber, it can be divided into various specialized types with higher strength than ordinary conveyor belts, and longer length, which can reduce the number of transfer points and save power and management costs

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃
