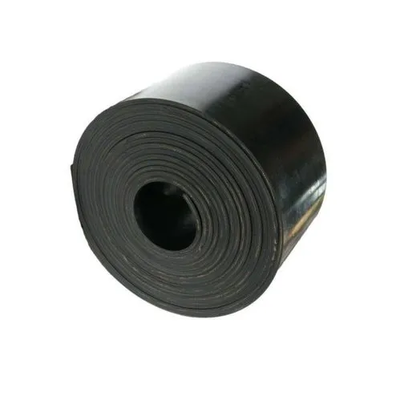

GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt

Name: GB/T7984-2001 300mm-3000mm Anti Sticking Conveyor Rubber Belt Cotton Canvas Conveyor Belt
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100
Price: 54.20 USD
Availability: InStock

Marka Adı:	UCER
Model Numarası:	EP100
Adedi:	100 metre
fiyat:	pazarlık edilebilir
Teslim Zamanı:	1 takım
Ödeme Şartları:	L/C,D/P,T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

Enterprise credit rating AAA

Renk:

Siyah

Bant genişliği:

800 mm

Kumaş tabakası:

1-12 katman

Ulusal Standart:

GB/T7984-2001

Modeli:

NN100

Pamuk kumaş tipi:

CC-56

çalışma yüzeyi:

1,5-10 mm

Çalışmayan yüzey:

0mm-6mm

Ambalaj bilgileri:

Demir ambalaj, demir çerçeve veya diğer

Yetenek temini:

Aylık 10000

Ürün Tanımı

GB/T7984 300mm-3000mm Conveyor Rubber Belt Anti Sticking

Ordinary conveyor belts, also known as ordinary cotton canvas conveyor belts, are suitable for conveying materials under short-distance and medium-load conditions. The pulling force is relatively low and the load-bearing capacity is limited.

Specifications and Models

Ordinary conveyor belts are divided into many specifications and models according to the use environment and requirements:

Transport Capacity Sizes: B300, B400, B500, B600, B650, B800, B1000, B1200, B1400, B1600, B1800, B2000 and other commonly used models (B stands for width, in millimeters)
Use Environment Types: Heat-resistant conveyor belt, cold-resistant conveyor belt, acid and alkali resistant conveyor belt, oil-resistant conveyor belt, food conveyor belt and other models

The minimum thickness of cover rubber on ordinary conveyor belts and food conveyor belts is 3.0mm, and the minimum thickness of lower cover rubber is 1.5mm. For heat-resistant, cold-resistant, acid and alkali resistant, and oil-resistant conveyor belts, the minimum thickness of cover rubber is 4.5mm, and the lower cover rubber should be at least 2.0mm. According to specific use environment conditions, the thickness of the upper and lower cover rubber can be increased by 1.5mm.

Technical Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Performance Characteristics

Ordinary conveyor belts of new materials feature:

High and low temperature performance: Continuous operation in temperature range of -73℃ to +260℃
Excellent resistance to chemical substances
Good electrical performance: Excellent insulation performance with high breakdown resistance strength
Good layer separation: Anti-sticking properties, low friction coefficient, smooth surface
Excellent dimensional stability: Stable under high temperature and high pressure, not easily deformed

Executive Standard: GB/T7984-2001
Covering Layer Specifications: Tensile strength ≥15Mpa, elongation at break ≥350%, abrasion ≤200mm³, interlayer adhesion strength ≥3.2N/mm between cloth layers, and ≥2.1N/mm between cover rubber and cloth layers.

Product Images
